Aurora AAC-2101 Access Control POE

Power Over Ethernet

Outputs

Inputs

Integrated Lock Power

Solid State Design

Onboard Diagnostics

3-Years Warranty

POE POWERED 1 DOOR

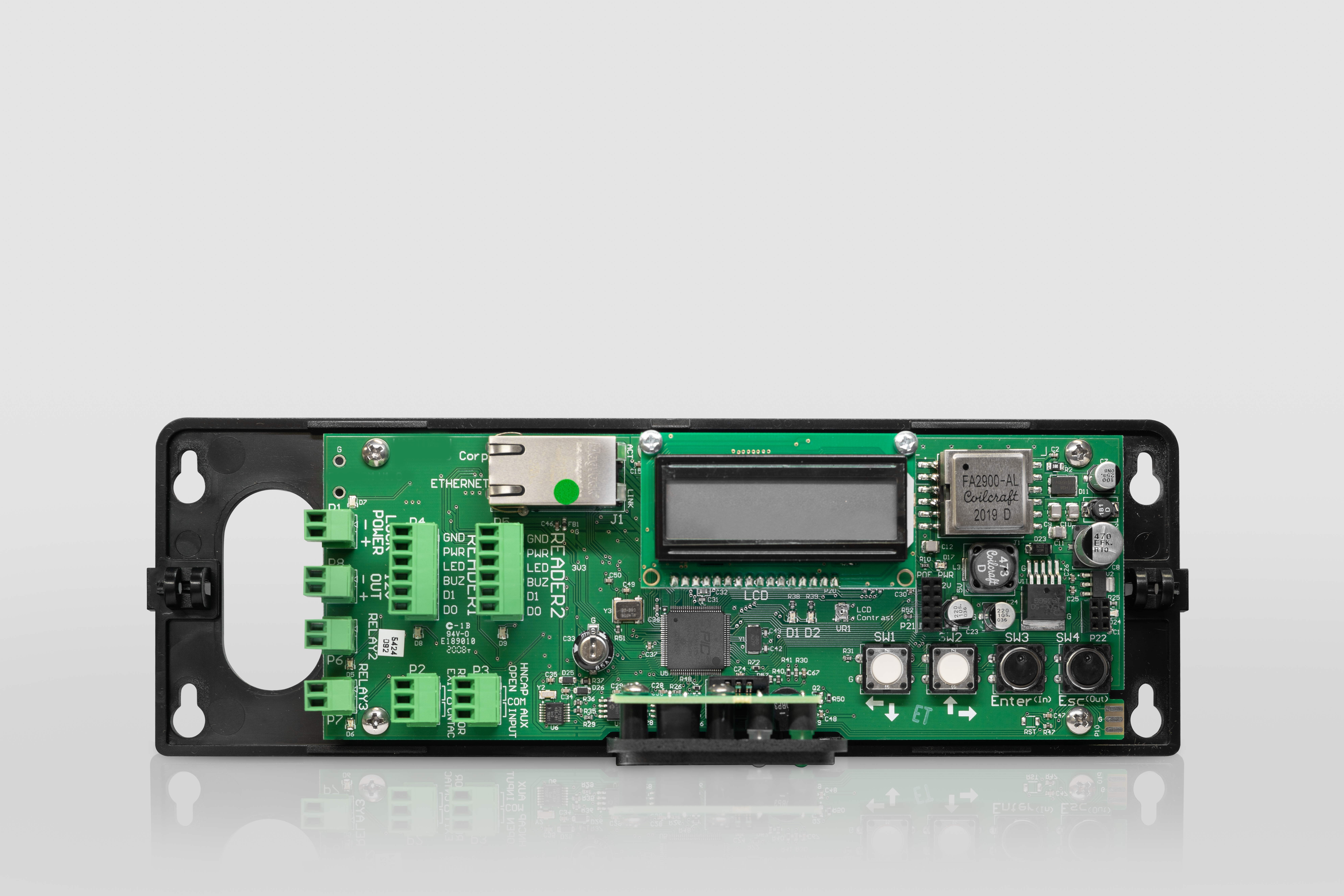

The AAC-2101 is our PoE (Power over Ethernet) single door controller. Designed to be mounted above the door, It saves time on installation, troubleshooting and cabling cost.

Specifications

Outputs

1 X Lock power up to 12V @ 500mA. Wire Spec 152m Max Distance, 2 Conductors stranded 18 AWG.
2 X Solid state relays up to 24V @ 1A.
1 X 12V out up to 12V @ 300mA. Wire spec 152m Max Distance, 2conductors stranded 22AWG.

Storage

Stores up to 100,000 cardholders. Stores up to 50,000 events. First in first out queue.

MISC

Super capacitor maintains data and time up to l month without power.
Photo-resistive tamper sensor.
Piezo buzzer.
Automatic DST switch.

Software

Door controller is programmed and monitored from PN server software.
Software can be hosted by Aurora controls, Security integrator or via local/ remote Windows PC/ Server.

Enclosure

Black ABS enclosure 10″x2.2″x3.5″. Includes mounting screws and wall anchors. Optional backbox available.

Communication

1 X RJ-45 10/100 Mbps ethernet port, PoE standard (15.4W), 100m max distance. Wire Spec 100m max distance, Cat5 or better.

Inputs

4 X Fully configurable digital inputs. Supports supervised state with included 8 X 1k ohm resistors. Wire Spec 152m Max Distance, 2 Conductors stranded 22 AWG, shielded.
2 X Wiegand ports. Wire Spec 152m Max Distance, 6 Conductors stranded not twisted, 24 AWG, shielded

Certifications

UL 294/ ULC S319-05 listed, FCC
