AIC-P3D4V-LA

Contact us

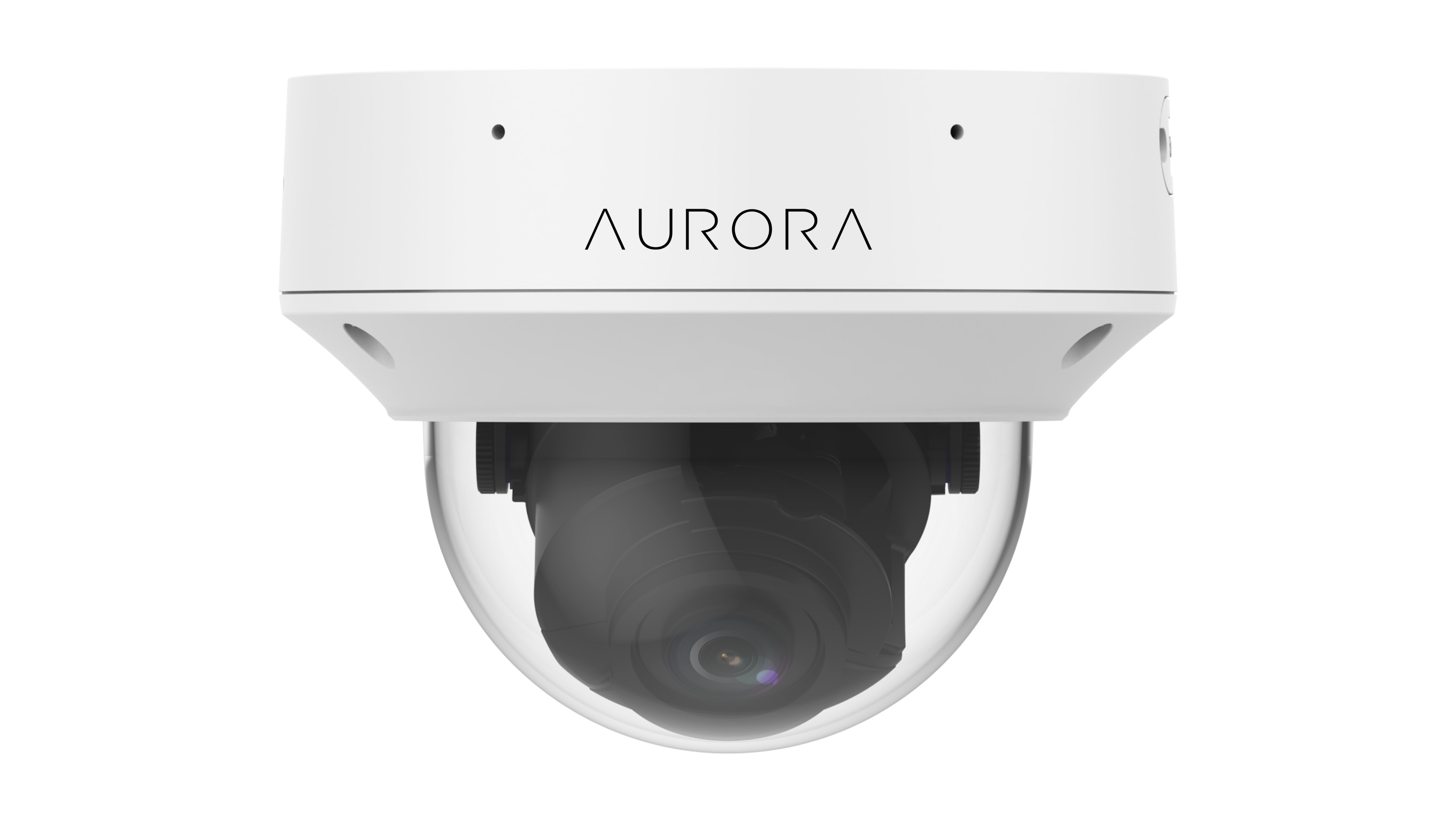

Aurora AIC-P3D4V-LA Dome Network Camera

Great image in 4MP

2688 X 1520@60 fps

Perimeter guard: line crossing, Intrusion, Entrance & Exit Detection , Classified Humans and Vehicles to decrease fault alarms

Up to 130 dB True WDR (Wide Dynamic Range)

I-IR up to 40m IR distance

IK10 vandal resistant and IP67 protection

Specifications

Image sensor

1/2.8", CMOS

Lens

2.7 to 13.5mm

Day / Night

IR-cut filter with auto switch (ICR)

Minimum illumination

Color: 0.003 Lux (F1.6, AGC ON)

Shutter time

Auto/Manual, 1 - 1/100000s

Video Compression

H.265, H.264, MJPEG

Resolution

4 MP

Frame rate

M_Stream: 4 MP (2688 x 1520), max. 60 fps
Sub_Stream: 1080P (1920 x 1080), max. 60 fps
Third_Stream: D1 (720 x 576), max. 60 fps

Video streaming

Triple Streams

Image settings

White Balance, Flip, 2D/3D DNR, Defog, HLC, BLC, WDR 130dB, Privacy mask Up to 8 areas, Overlay up to 10, ROI

Audio streaming

Two‑way Audio / Built-in dual-mic

Audio Compression

G.711U, G.711A

Audio IN/OUT

1/1

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

Supported protocols

SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, • TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

Analytics

Aurora Perimeter guard included: line crossing, Intrusion, Entrance & Exit Detection (Classified Humans and Vehicles to decrease fault alarms), People Counting

Events

Motion detection, Advance Motion Detection, Tampering alarm, Audio detection, Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Protection Certificate
