AIC-P2D4V-LA

Proudly Canadian

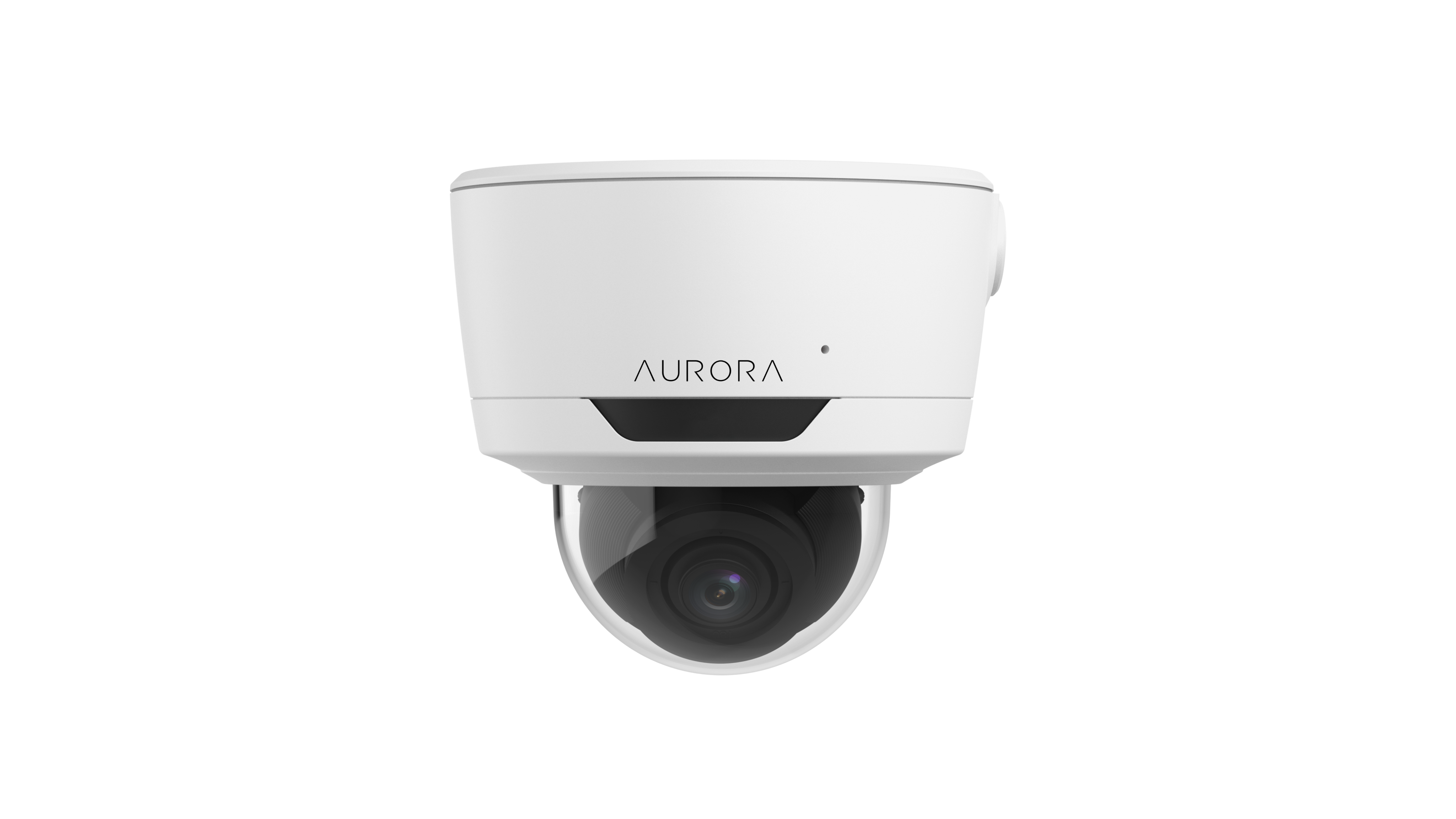

Aurora AIC-P2D4V-LA Dome Network Camera

Great image in 4MP

2688 X 1520@30 fps

Perimeter guard: line crossing, Intrusion, Entrance & Exit Detection , Classified Humans and Vehicles to decrease fault alarms

Up to 130 dB True WDR (Wide Dynamic Range) - Scene Balance

I-IR up to 40m IR distance

IK10 vandal resistant and IP67 protection

Specifications

Image sensor

1/3.0", CMOS

Lens

2.7 to 13.5mm

Day / Night

IR-cut filter with auto switch (ICR)

Minimum illumination

Color: 0.002 Lux (F1.2, AGC ON)

Shutter time

Auto/Manual, 1 - 1/100000s

Video Compression

H.265, H.264, MJPEG

Resolution

4MP

Video streaming

Triple Streams

Image settings

White Balance, Intelligent IR(I-IR), Flip, 2D/3D DNR, Defog, HLC, BLC, WDR 130dB, Scene Balance, Privacy mask Up to 4 areas, Overlay up to 8, ROI

Frame rate

M_Stream: 4 MP (2688 x 1520), max. 30 fps; 4 MP (2560 x 1440), max. 30 fps; 3 MP (2304 x 1296), max. 30 fps; 1080P (1920 x 1080), max. 30 fps
Sub_Stream: 1080P (1920 x 1080), max. 30 fps; 720P (1280 x 720), max. 30 fps; D1 (720 x 576), max. 30 fps; 640 x 360, max. 30 fps; 2CIF (704 x 288), max. 30 fps; CIF (352 x 288), max. 30 fps
Third_Stream: D1 (720 x 576), max. 30 fps; 640 x 360, max. 30 fps; 2CIF (704 x 288), max. 30 fps; CIF (352 x 288), max. 30 fps

Audio Compression

G.711U, G.711A, AAC-LC

Audio streaming

Two-way Audio (Built-in dual-mic)

Audio IN/OUT

1/1

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

Supported protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH

Analytics

Aurora Perimeter guard included: line crossing, Intrusion, Entrance & Exit Detection (Classified Humans and Vehicles to decrease fault alarms), People Counting

Events

Motion detection, Advance Motion Detection, Tampering alarm, Audio detection, Object removed, Object Left, Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Protection Certificate
