AILS-1680-CMAI

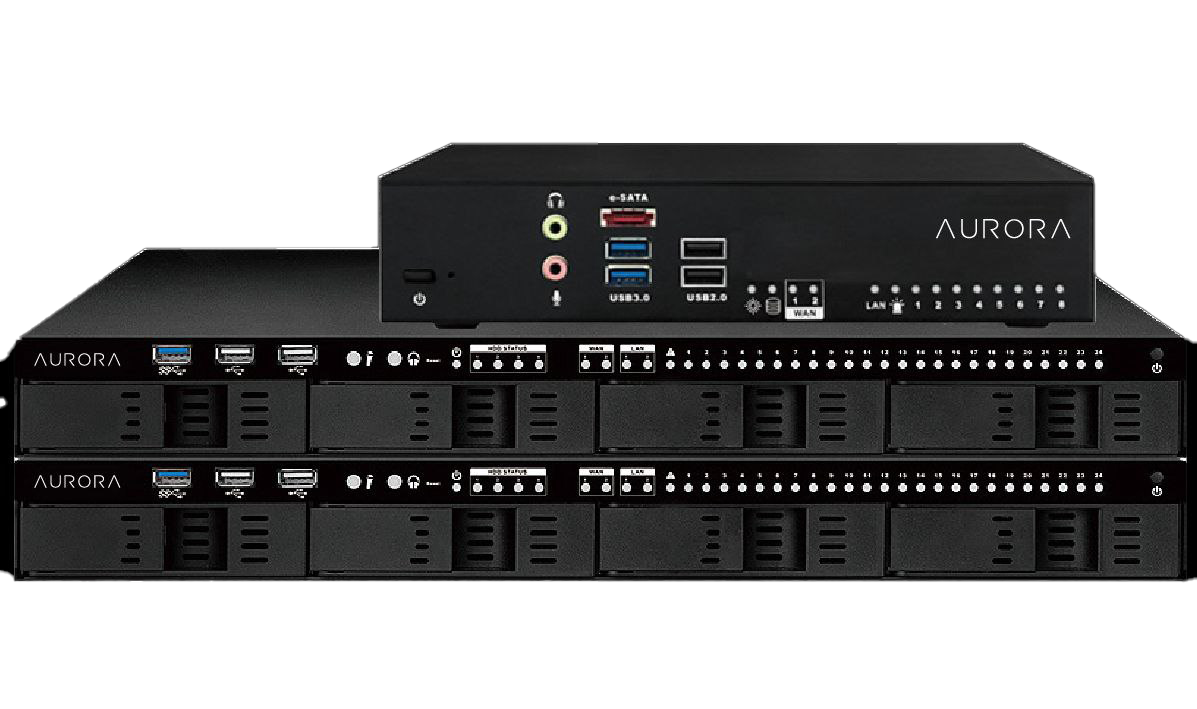

Aurora AILS-1680-CMAI Iron Link Server
Built-in 16 PoE port, 802.3af/at, 30W
AI Ready Appliance
Canopy Cloud Management
Storage up to 80TB
Windows IOT / Linux
Trusted Platform Module (TPM)
3 Year NBD Warranty
Specifications
CPU
Intel® Alder Lake i5 (Optional: i3/i7)
RAM
(2) DDR5, 8GB | Optional: (2) 16GB
Boot Drive
M.2 SSD, 512GB
Graphics
Intel® UHD Graphics 730 / 770
AI Accelerator (Supported)
HAILO 8 Inferencing Module
Display Port Output
(2) Up to 7680×4320 @60Hz
HDMI Output
(2) Up to 4096×2160 @60Hz
Audio Input
(1) 3.5 mm TRS Jack
Audio Output
(1) 3.5 mm TRS Jack
USB Port
FRONT: (2) USB 2.0; (1) USB 3.2
REAR: (1) USB 3.2; (1) USB 3.2, Type-C
Operating System
Embedded Windows® 10 / Ubuntu® Linux
PCAM Throughput
Average: 640Mbps
Peak: 840Mbps (with i5)
GPU Hardware Decoding
128CH real-time display (with i5) | Up to 3840 fps @ D1 decoding
Compression Format
H.264 / H.265
SATA Interface
(4) 3.5” SATA
eSATA Interface
N/A
Hardware RAID*
N/A
M.2 Interface
(3) PCIe x4; (1) PCIe x2
Digital Input
Optional: (4) Input level +/- 24V DC, Terminal Block
Relay Output
Optional: (1) 24V, 1A, Solid State Relay, Terminal Block
COM Port
Optional: (1) RS-232/RS485, Terminal Block
WAN Uplink
(2) RJ-45, 10M/100M/1G/2.5Gbps
LAN Uplink
(2) RJ-45, 10/100/1000 Mbps
LAN Port with POE
(16) RJ-45, 10/100 Mbps
PoE Level
(16) IEEE 802.3 af/at
PoE Total Power Budget
360W
PoE & Switch Mgmt.
Windows 10 SDK / Linux SDK
Unit Dimensions (mm)
428 x 435 x 44
Unit Weight (kg)
4.5 kg
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Operating Humidity
10% ~ 90% Non-condensing
Power Supply
AC 100~240V, 520W (53V / 360W, 12V / 160W)
