AIC-SB4F2-LAB5

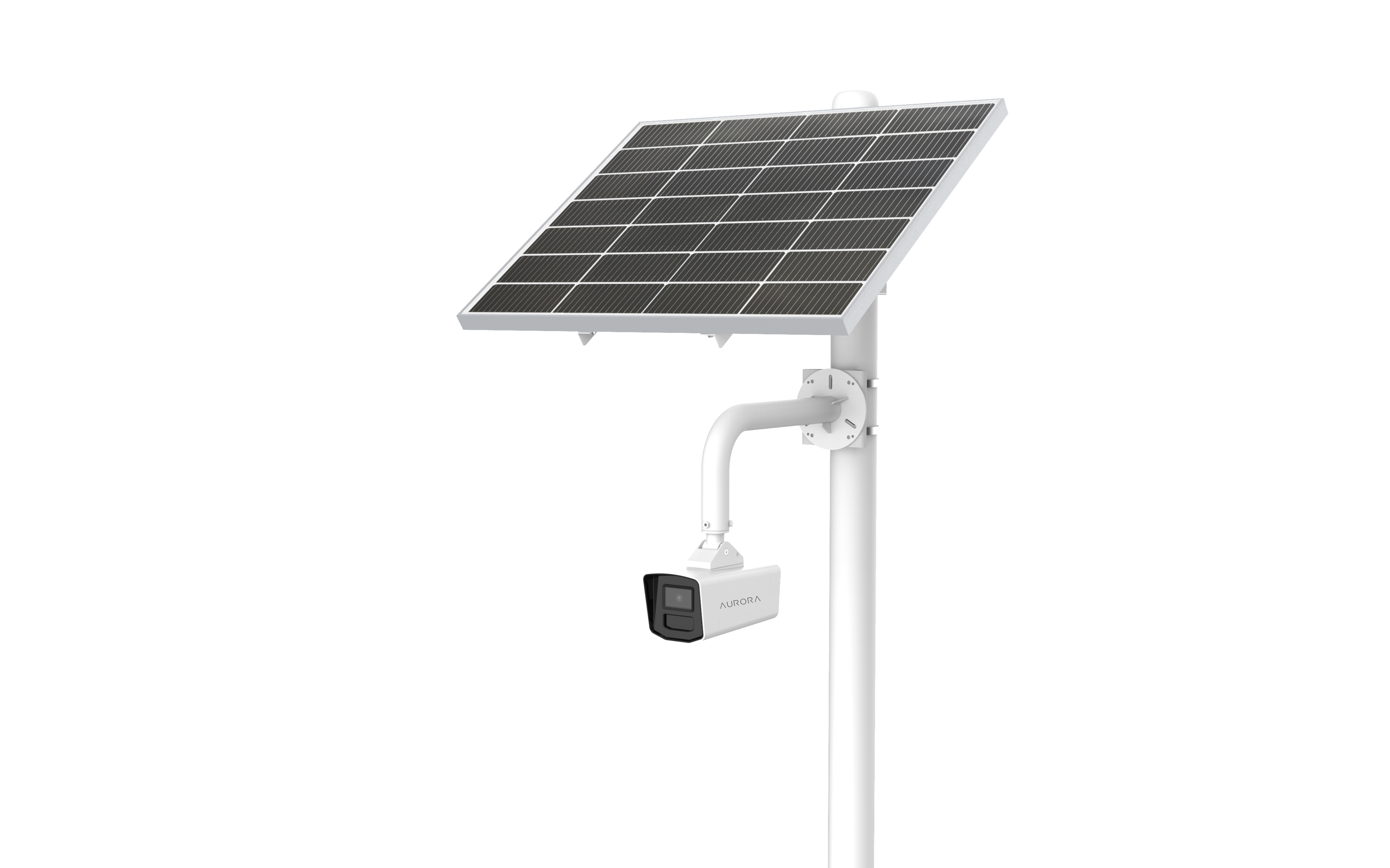

Aurora AIC-SB4F2-LAB5 Solar Network Camera
4G Solar-powered 4MP Bullet Camera
Great image in 4MP (2688*1520)
All-in-one kit, 4G connectivity and solar energy for a fully wireless solution
9 Days Battery Life Guaranteed
Intelligent Energy-saving Operation Mode
Advanced AI algorithms
Rugged and sturdy waterproof design
Specifications
Day / Night
Day/Night/Auto/Customize/Schedule
Image sensor
1/2.8”, CMOS
Minimum illumination
Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
Lens
2.8 mm, Fixed Lens
Horizontal field of view: 111°
Vertical field of view: 61°
Diameter field of view: 128°
Shutter time
1/100000s~1s
Frame rate
M_Stream: 60Hz: 15fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
50Hz: 12fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
Sub_Stream: 60Hz: 15fps@(1280*720, 704*576, 640*480)
50Hz: 12fps@(1280*720, 704*576, 640*480)
Video streaming
Double Streams
Image settings
Brightness, Contrast, Saturation, Sharpness, Privacy Mask (4 areas), ROI (8 areas), CBR/VBR Adjustable, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
Video Compression
H.265/H.264
Resolution
4MP (2688*1520)
Audio streaming
Two‑way Audio
Audio IN/OUT
1/1
Compatible Integration
ONVIF (Profile S, Profile G, Profile T, Profile M), API
Analytics
Intrusion Detection, Line Crossing, Object Left, Advanced Motion Detection, Tamper Detection, Human/Vehicle Classification (Bicycle/Car/Motorcycle/Bus/Truck)
Events
Analytics, External Input, etc.
Protection Certificate
IP67
Wind Resistance: Level 12 (Hurricane-force)
Surge Protection: 4KV
Power
DC 12V±10%
Power Consumption:
Sleep Mode: 0.19 W
Basic: 1.71 W (Event + 4G Module OFF)
1.65 W (Event + 4G Module OFF + Dynamic FPS On)
Max: 3.89 W (Illuminator + Event + 4G streaming ON)
Connectors
Alarm I/O: 1/1
Audio I/O: 1/1
Network: 1 × RJ45 10M/100M Ethernet
1x RS-485
Storage
microSD/SDHC/SDXC Local Storage, up to 1TB
Operation Condition
Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity: 0~95% (Non-condensing)
Approvals
EMC:
CE-EMC (EN 55032,EN 55035)
FCC (PART 15B)
RCM (AS/NZS CISPR 32)
Safety:
CE-LVD (EN IEC 62368-1)
RCM (AS/NZS 62368.1)
FR:
CE-RED (EN 300 328,EN301489-1,EN301489-17,EN 62133)
FCC (Part 15.247)
RCM (AS/NZS 4268,AS/CA S042.1,AS/CA S042.4,AS/NZS 2772.2)
Telec (MIC Item 19 of Article 2 Paragraph 1)
Environment:
CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
Dimensions (L * W * H)
Camera: 120*120*260 mm
Weight
Camera: 2.2 Kg
