AIC-PB8V-LAB

Proudly Canadian

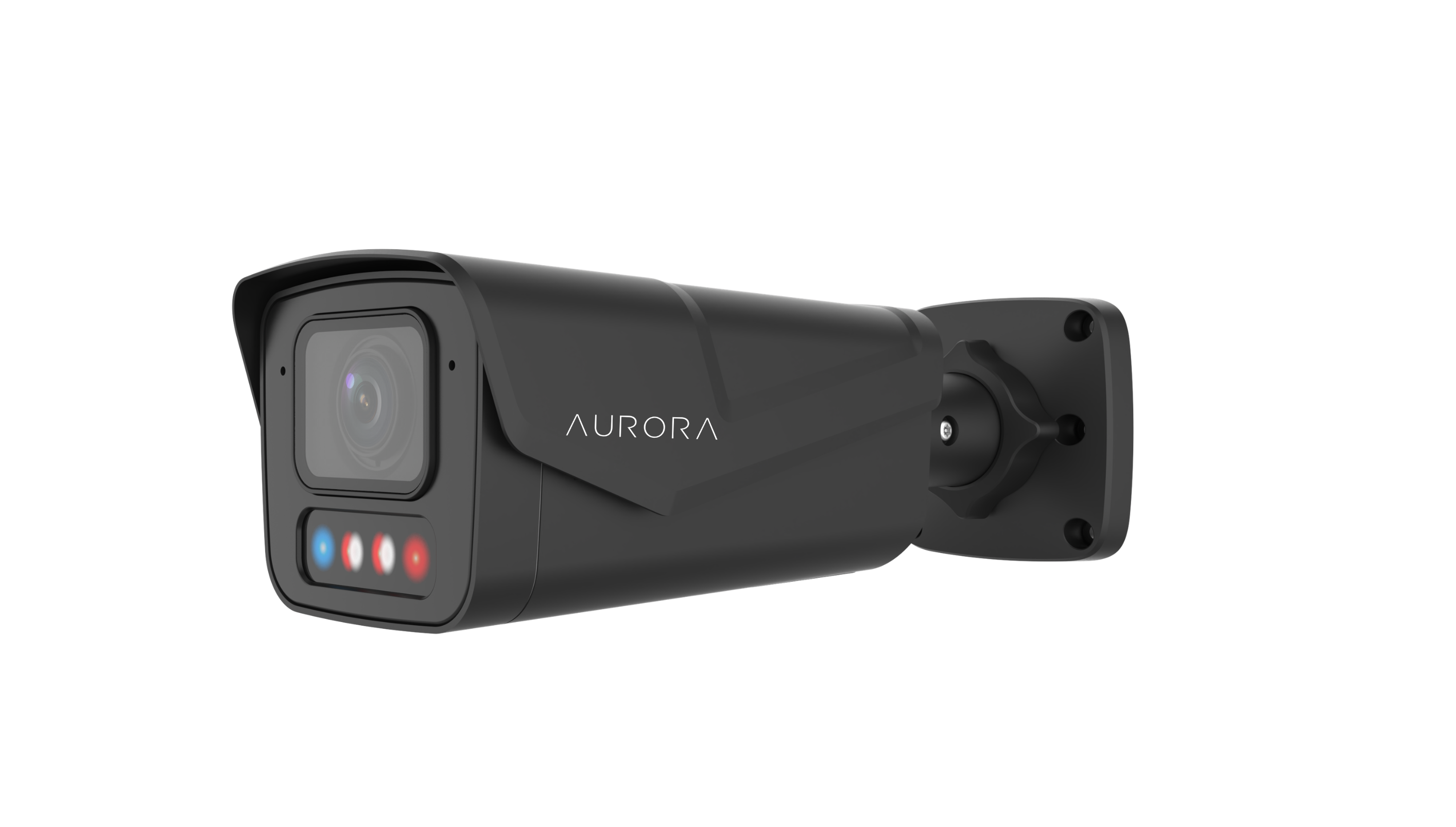

Aurora AIC-PB8V-LAB Bullet Network Camera

Great image in 8MP

3840 × 2160@30 fps

Perimeter guard: line crossing, Intrusion, Entrance & Exit Detection , Classified Humans and Vehicles to decrease fault alarms

24 Hours full-color images

Up to 130 dB True WDR (Wide Dynamic Range) - Scene Balance

I-IR up to 40m IR distance, White light up to 40m

Specifications

Image sensor

1/1.8”, CMOS

Lens

Focal Length: 2.8 to 12mm

Day / Night

IR-cut filter with auto switch (ICR)

Minimum illumination

Color: 0.0005 Lux (F1.2, AGC ON)

Shutter time

Auto/Manual, 1 ~ 1/100000s

Video Compression

H.265, H.264, MJPEG

Resolution

8 MP

Frame rate

M_Stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Sub_Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Third_Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps;

Video streaming

Triple Streams

Image settings

White Balance, Intelligent IR(I-IR), Flip, 2D/3D DNR, Defog, HLC, BLC, WDR 130dB, Scene Balance, Privacy mask Up to 4 areas, Overlay up to 8, ROI

Audio streaming

Two‑way Audio

Audio Compression

G.711U, G.711A

Audio IN/OUT

Built-in dual-mic
Built-in Speaker

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

Supported protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH

Analytics

Aurora Perimeter guard included: line crossing, Intrusion, Entrance & Exit Detection (Classified Humans and Vehicles to decrease fault alarms), People Counting

Events

Motion detection, Advance Motion Detection, Tampering alarm, Audio detection, Object removed, Object Left, Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Protection Certificate
