AIC-AP4Z-LA36 PTZ

Proudly Canadian

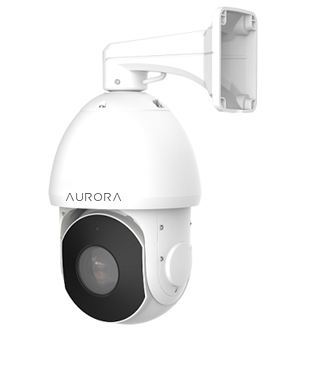

Aurora AIC-AP4Z-LA36 PTZ Network Camera

Great image in 4MP , 2688x1520 @60 fps

36X Optical Zoom, 16X Digital Zoom

140dB Super WDR

I-IR up to 300m IR distance

Auto Tracking

Specifications

Image sensor

1/1.8″ Progressive Scan CMOS

Lens

Focal Length: 5.7~205.3mm

Day / Night

Day / Night / Auto / Customize / Schedule

Minimum illumination

Color: 0.002Lux@F1.4
B/W: 0 Lux with IR on

Shutter time

1/100000s~1s

Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Resolution

4MP

Video streaming

3 Streams

Image settings

White Balance, BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, Deblur, Anti-flicker, Corridor Format, 140dB WDR, Privacy mask Up to 8 areas, ROI up to 8 area

Frame rate

M_Stream: 60Hz: 60fps@(2688x1520,2304x1296, 1920x1080,1280x720)
50Hz: 50fps@(2688x1520,2304x1296, 1920x1080,1280x720)
Sub_Stream: 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Third_Stream: 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240), 15fps@(1920x1080)
50Hz: 25fps@(1280x720,704x576, 640x480,640x360, 320x240), 15fps@(1920x1080)

Audio streaming

Two‑way Audio

Audio Compression

G.711/AAC/G.722/G.726

Audio IN/OUT

1 Audio Intput Interface
1 Audio Output Interface

Supported protocols

IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2

Analytics

Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed. Detect up to 50 targets, Attribute Recognition, Face Detection, Object Counting & Report

Events

Motion Detection, Tamper Detection, External Output, External Input, Audio Alarm, Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark

Protection Certificate
