AIC-AB8V4-LA

Proudly Canadian

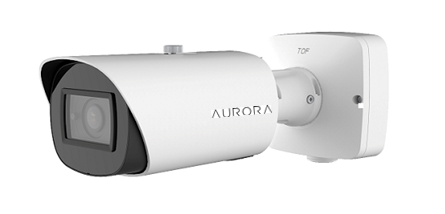

Aurora AIC-AB8V4-LA Bullet Network Camera

Full-Feature 8MP Varifocal Bullet with I-IR

Great image in 8MP (3840 × 2160@30 fps)

Perimeter guard: line crossing, Intrusion, Entrance & Exit Detection , Classified Humans and Vehicles to decrease fault alarms

24 Hours full-color images

Up to 130 dB True WDR (Wide Dynamic Range) - Scene Balance

I-IR up to 40m IR distance, White light up to 40m

Specifications

Image sensor

1/1.8″ Progressive Scan CMOS

Lens

Focal Length: 2.8 to 12 mm

Day / Night

Day / Night / Auto / Customize / Schedule

Minimum illumination

Color: 0.0008Lux@F1.2

B/W: 0 Lux with IR on

Shutter time

1/100000s~1s

Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Resolution

Frame rate

M_Stream: 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944,2592x1520, 2048x1536, 1920x1080, 1280x960,1280x720)

50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944,2592x1520, 2048x1536, 1920x1080, 1280x960,1280x720)

Sub_Stream: 60Hz: 60fps@(704x576, 640x480, 640x360)

50Hz: 50fps@(704x576, 640x480, 640x360)

Third_Stream: 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)

50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)

Quaternary_Stream: 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360)

50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360)

Video streaming

4 Streams

Image settings

White Balance, BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, Deblur, Anti-flicker, LDC, DIS, 120dB WDR, Privacy mask Up to 8 areas, ROI up to 8 area, Up to 32X Hybrid Zoom

Audio streaming

Two‑way Audio

Audio Compression

G.711/AAC/G.722/G.726

Audio IN/OUT

1 Audio Intput Interface

1 Audio Output Interface

Compatible Integration

ONVIF Profile G & M & S & T, One API

Supported protocols

IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Protection Certificate

IP67

IK10

Surge Protection 6KV

Power

DC 10V~DC 28V, PoE+ (802.3at)

Power Consumption: Min.: 4W (DC), 4.9W (PoE+), Max.: 15.4W (DC), 17.8W (PoE+)

Connectors

Alarm I/O: 1/1

Network: 1*RJ45 10M/100M Ethernet Port

Storage

Edge Storage: Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
