AIC-AB8LV-LA

Proudly Canadian

AIC-AB8LV-LA – Aurora Communication Technologies

Specifications

Image sensor

1/1.8″ Progressive Scan CMOS

Lens

Focal Length: 6.4~128mm

Day / Night

Day / Night / Auto / Customize / Schedule

Minimum illumination

Color: 0.009Lux@F1.6

B/W: 0 Lux with IR on

Shutter time

1/100000s~1s

Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Resolution

Video streaming

3 Streams

Image settings

White Balance, BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, Deblur, Anti-flicker, Corridor Format, 120dB WDR, Privacy mask Up to 8 areas, ROI up to 8 area,

Frame rate

M_Stream: 60Hz: 30fps@(3840x2160,3072x2048, 2592x1944, 2592x1520, 2048x1536,1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 25fps@(3840x2160,3072x2048, 2592x1944, 2592x1520, 2048x1536,1920x1080, 1280x960, 1280x720, 704x576)

Sub_Stream: 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)

Third_Stream: 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)

50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)

Audio streaming

Two‑way Audio

Audio Compression

G.711/AAC/G.722/G.726

Audio IN/OUT

1 Audio Intput Interface

1 Audio Output Interface

Compatible Integration

ONVIF Profile G & M & S & T, API

Supported protocols

IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Analytics

Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed. Detect up to 50 targets, Attribute Recognition, Face Detection, Object Counting & Report

Events

Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark

Protection Certificate

IP66

Power

PoE (802.3at) / DC 12V/3A±10%

Power Consumption: Min.: 12.5W (DC 12V), 15W(PoE), Max.: 21W (DC 12V), 25W(PoE)

Connectors

Alarm I/O: 1/1

Network: 1*RJ45 10M/100M Ethernet Port

Storage

Edge Storage: microSD/SDHC/SDXC Card Local Storage, up to 1TB

Network Storage: NAS (Support NFS, SMB/CIFS), ANR

Operating conditions

-40℃ ~60℃(-40°F~ 140°F)

0~90% RH (Non-condensing)

Approvals

EMC:

CE-EMC (EN 55032, EN 55035)

FCC (PART 15B)

Safety:

CE-LVD (EN IEC 62368-1)

Environment:

CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

Dimensions (L * W * H)

110mmX337mmX220mm

Weight

2.9Kg

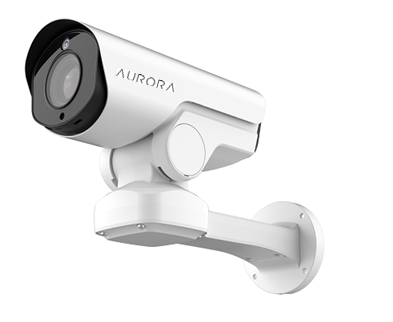

Aurora AIC-AB8LV-LA Bullet Network Camera
