Pro Series

Products

Aurora Pro-Series Access Readers

OSDP READER
Dual Frequency Operation Voltage	9-18V DC
Standby Current	<50mA
Frequency	125KHz & 13.56MHz
Read Range	2 to 4 cm
Operating Temperature	-40°C to 60°C
Operating Humidity	0% to 98%RH
Color	Black
Index of Protection	IP66

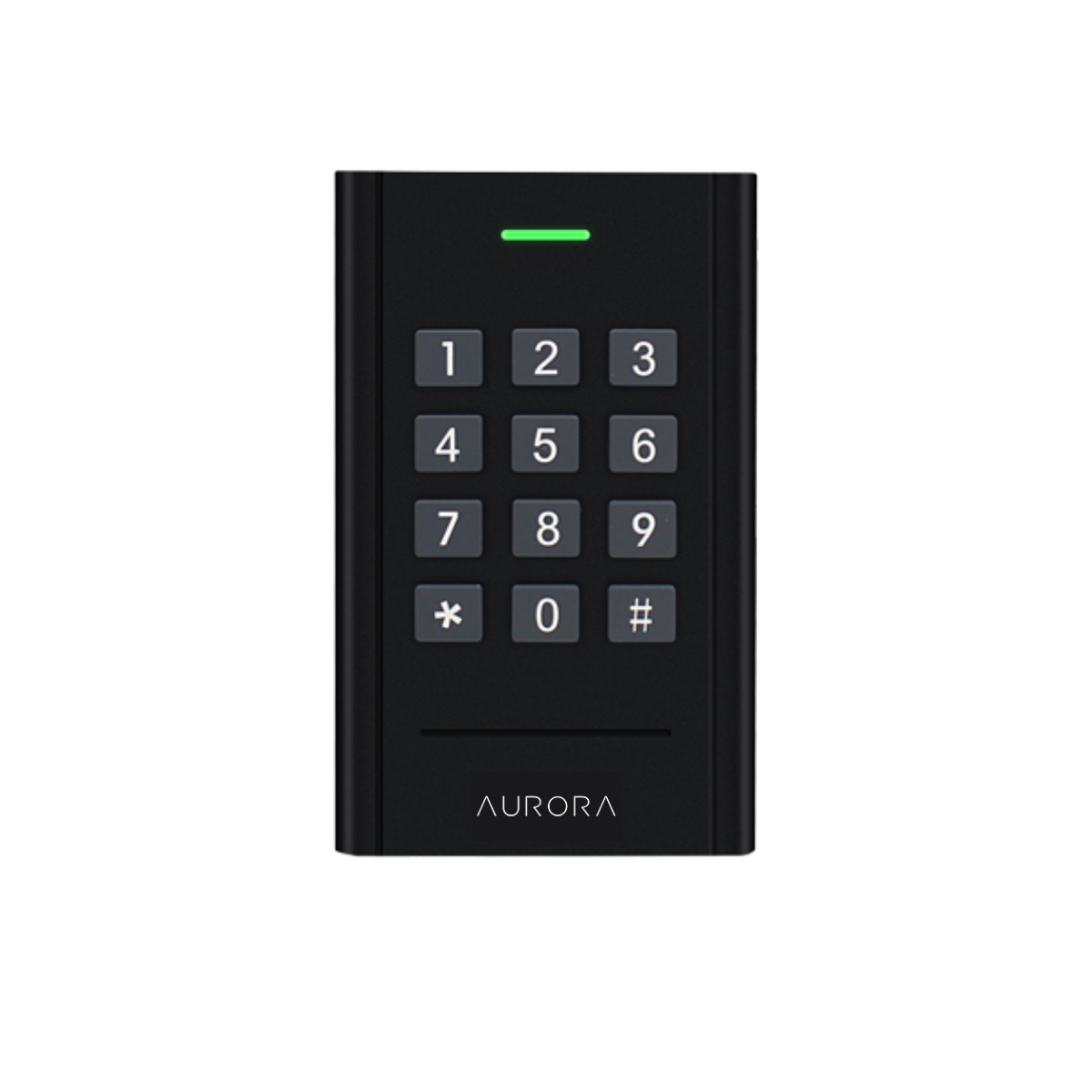

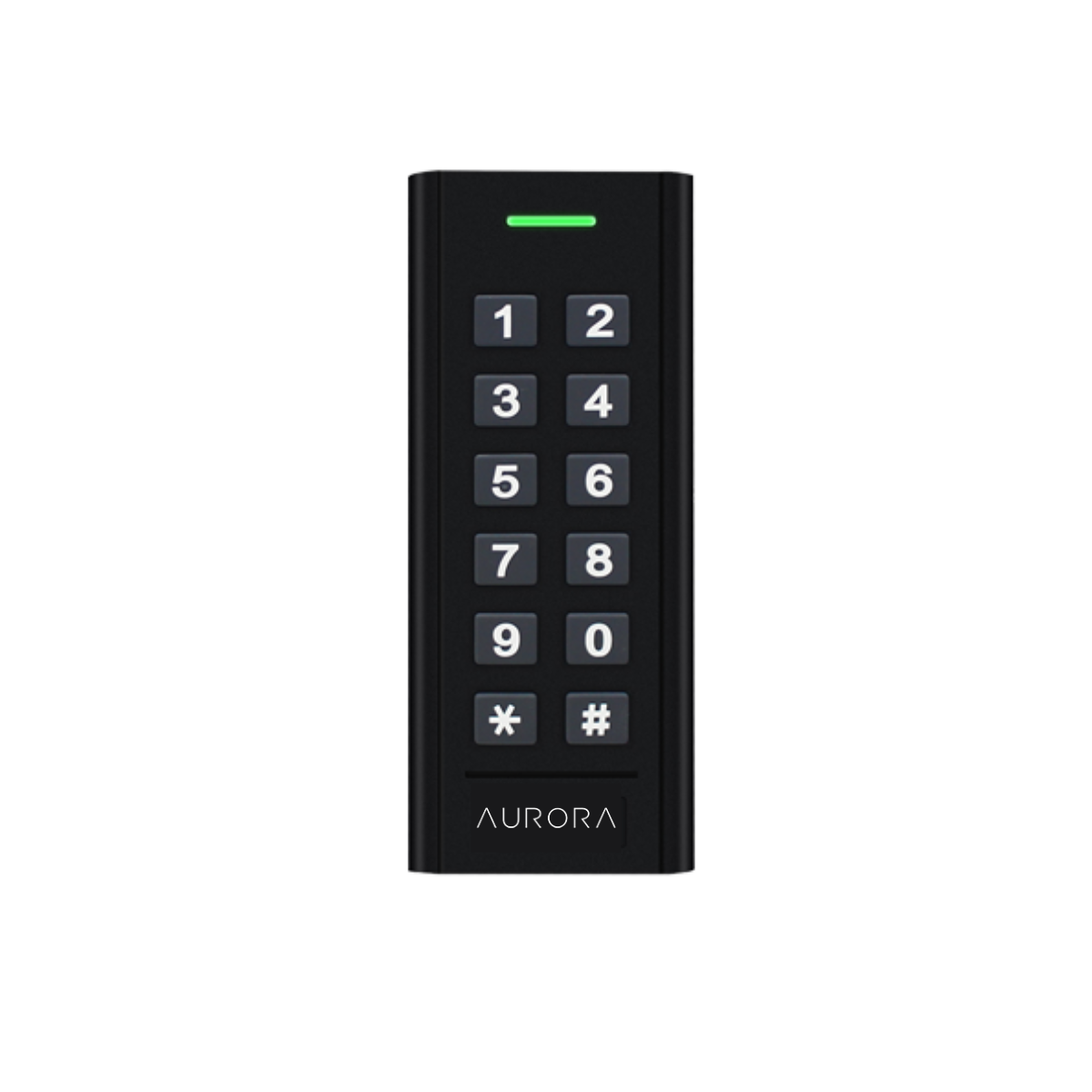

OSDP KEYPAD READER
Dual Frequency Operation Voltage	12-18V DC
Standby Current	<50mA
Frequency	125KHz & 13.56MHz
Read Range	2 to 4 cm
Operating Temperature	-40°C to 60°C
Operating Humidity	0% to 98%RH
Color	Black
Index of Protection	IP66
Keypad Transmission Format	4bits (factory default) 8 bit or virtual card number can be set
ACCESS CONTROL READER
Operating Voltage	9 to 18 DC
Frequency	125KHz & 13.56MHz
Read Range	3 to 8 cm
Standby Current	<25mA
Output Format:	EM: 26 bits HID: 26 bits Mifare: 34/58 bits (32/56 bits optional)
Card Type:	125KHz Hid & EM cards 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, NFC and CPU cards
Operating Temperature	-40°C to 60°C
Operating Humidity	10% to 98%RH

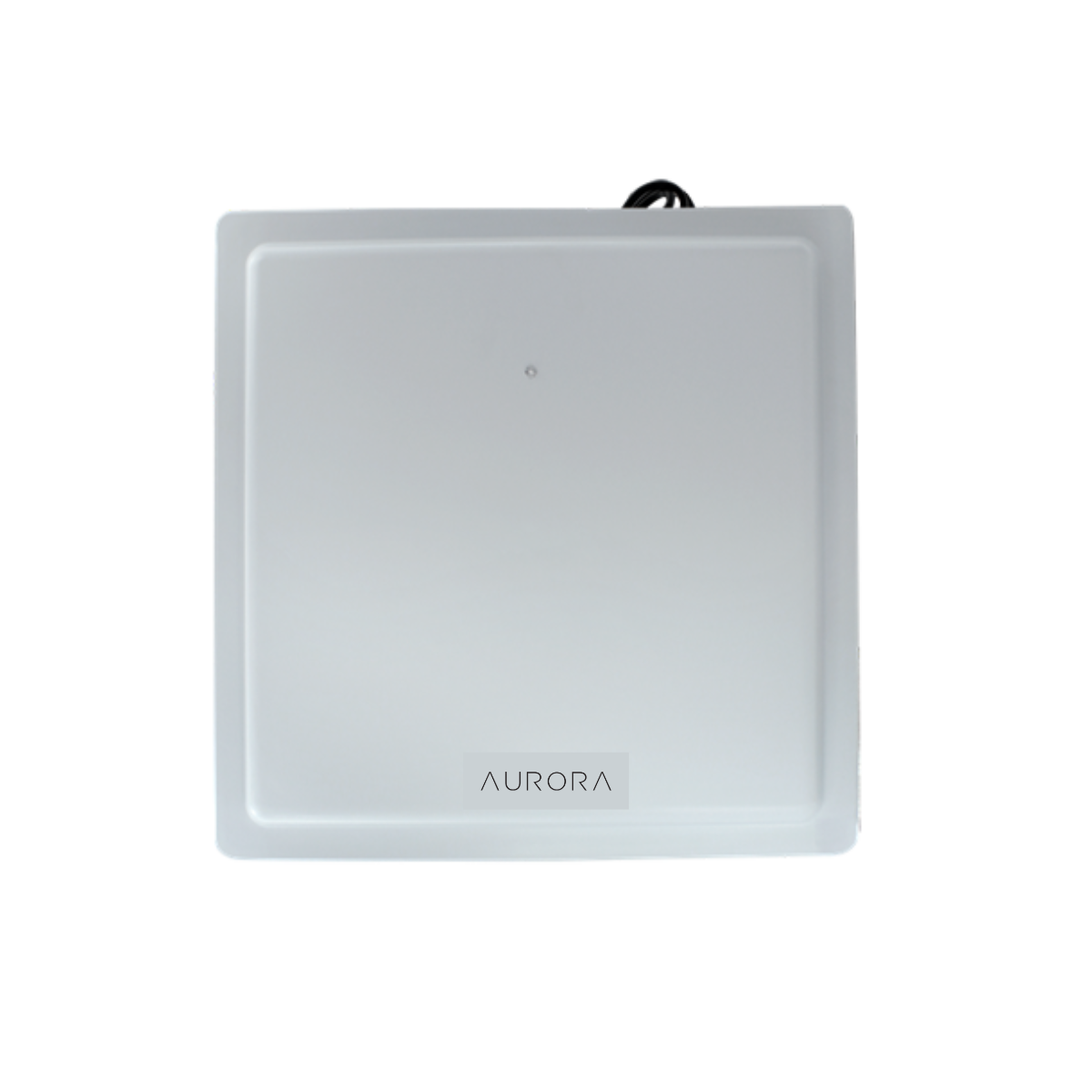

LONG RANGE UHF READER
Reading Distance	Stable is 12m, Maximal is 30m
Working Frequency	National standard= 920 to 925MHz America Standard= 902 to 928MHz or customize other frequency
Recognition speed	>120km/h
Support Protocol	ISO-18000-6C(EPC G2)
Antenna Gain	12dbi
Polarization	Horizontal Polarization
Voltage	12VDC
Current	<400mA
Power Consumption	<5W
Communications interface	Wiegand 26bit, 34bit, 42bit, RS232, RS485, 10/100M Ethernet
Operating Temperature	-40°C to 65°C
Storage Temperature	-60°C to 85°C
Operating Humidity	10% to 90%RH

Please download the technical documents here
