AOC-SS-462
Aurora AOC-SS-462 Outdoor Cabinet
- Firm Structure
- Modular Installation
- Lightning Protection
- Dustproof
- Rainproof

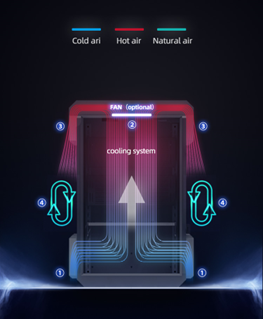

- Ventilation
- Heat Dissipation
- Anti-corrosion
Specifications
| Dimensions | |
| Outer Size (W*H*D) | 400*600*200mm |
| Inner Size (W*H*D) | 350*560*190mm |
| Gross Weight | 12.3KG |
| Packaging Size (W*H*D) | 500*700*300mm |
| Parameters | |
| Thickness | 1.2mm |
| Material | 430 Stainless Steel |
| Inlet Hole | Bottom |
| Installation | Pole/Wall/Floor |
| Door Opening | Front door |
| Surface Treatment | Powder coating |
| Color | Dark Gray + Light Gray |
| Protection Class | IP55 |
| Function | Junction, Distribution, Electrical, Battery, Control, Monitoring, Outdoor waterproof encloser box |
| 1970-01-01 00:00:00 | |
Documentations
Please download the technical documents here
