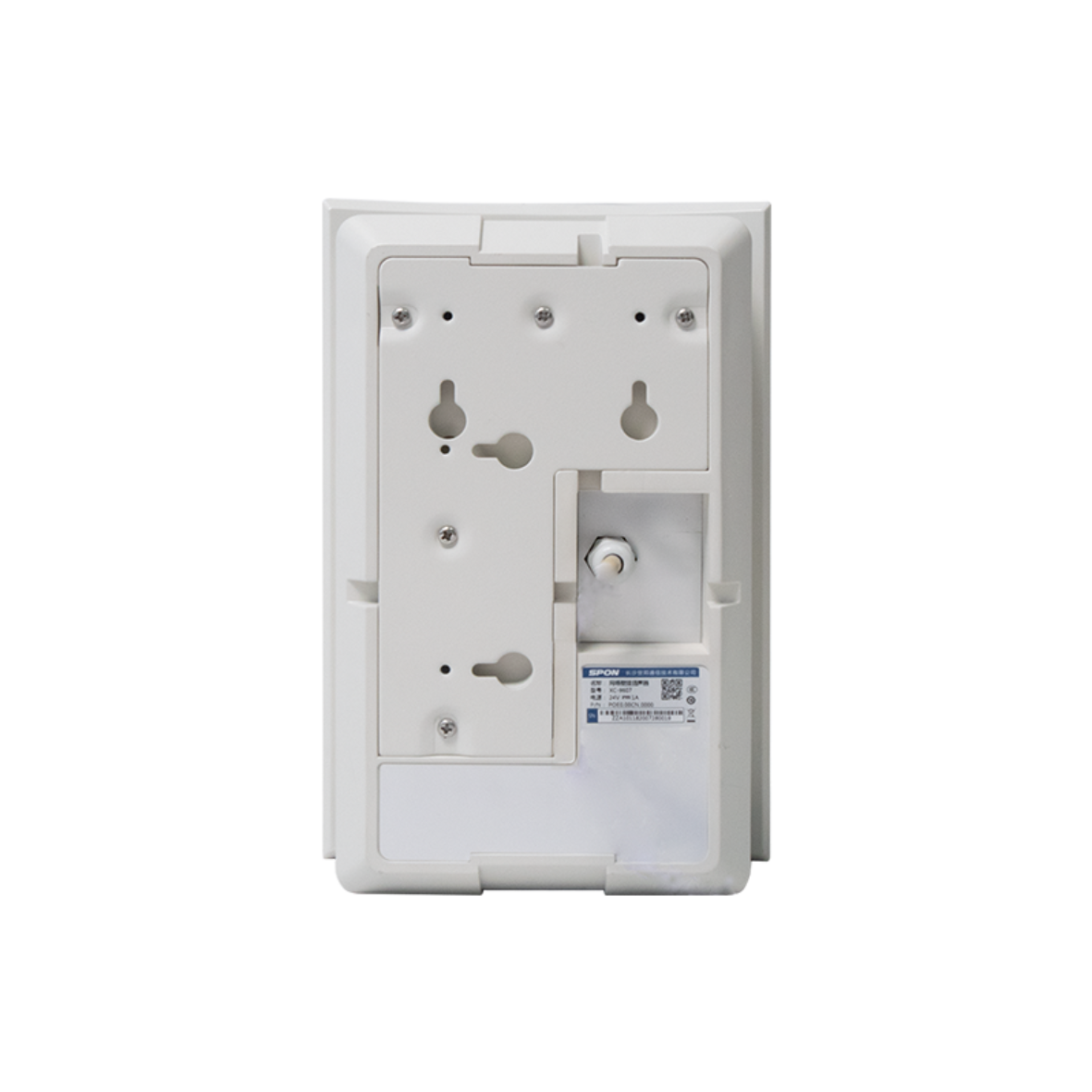

AIS-20W-M IP

Aurora AIS-20W-M IP Speakers

IP POE Wall Mount Speaker

– Employs a high-speed, industrial-grade dual-core (ARM+DSP) chip for superior processing power
– Features versatile voice encoding with both narrowband (G.711a/u) and broadband (G.722) options for crystal-clear voice paging
– Waterproof Microphone: Incorporates a waterproof microphone with dynamic volume adjustment, ensuring high-definition 2-Way Intercom
– ANC Function: Intelligently adjusts speaker volume based on ambient noise levels
– Supports receiving paging from SIP phones through 10 dedicated multicast addresses.
– Incorporates a multicast scalable function, efficiently saving SIP account resources
– Fully compatible with standard SIP protocols for seamless integration with leading SIP PBX systems
– Facilitates background music, emergency paging, and alarm signals from the ISAP AUDIO management system
– Features dynamic volume control that automatically adjusts based on ambient noise
– Offers flexible deployment with PoE or PoE+ interface support
– Equipped with remote management and online upgrading capabilities for ongoing system optimization

Specifications


Audio Parameters
  • Audio Codec: G.711A-law, G.711μ-law, G.722
  • Sensitivity: 88dB±3dB (1W, 1m)
  • Maximum SPL: 90dB±3dB
  • S/N (Signal-to-Noise) Ratio: ≥80dB
  • Audio Sampling & Bit Rate: 8kHz~44.1kHz, 16bit,
  • 8kbps~320kbps
  • Frequency Response: 100Hz~18kHz
Mechanical & Environment Condition
  • Mounting Method: Wall-mounted
  • Installation Environment: Indoor and outdoor
  • Waterproof rate: IP66
  • Operating Temperature:-20℃~+50℃ (-4℉~122℉)
  • Operating Humidity: 10%~90% RH non-condensing
  • Casing Material: UL94-V0 rated ABS Resin (Thickened/Flame Retardant)
  • Grille Material: Surface Spraying
  • Grille Surface Treatment: Metal Mesh Plate
  • Color: Off-White
  • Product Dimensions: 292x193x151.5mm
  • Product Weight: 2.4KG
Power Parameters
  • Power Supply: DC 24V/1A, PoE (IEEE802.3af), PoE+ (IEEE802.3at)
  • Standby Power Consumption: ≤3W
  • Rated Power Output: 20W(@ DC 24V/1A powered), 15W (@ PoE powered), 20W(@PoE+powered)
Network Parameters
  • Network I/F: 10BASE-T/100BASE-TX RJ45
  • Network Protocol: SIP (RFC3261),FTP,HTTP,TCP/ IP,UDP,ARP,ICMP,IGMP
  • Configuration Method: Web Interface or DevConfig Tool
Standard Accessories
  • 1×2-Pin Pluggable Terminal Block Connector (3.81mm Pitch, AWG 26-16)
  • 1×4-Pin Pluggable Terminal Block Connector (3.81mm Pitch, AWG 26-16)
  • 1×Waterproof Joint 1×Quick Installation Guide
  • 1×Quality Certificate&Warranty Card
  • 1×Wall Mounting Bracket
Certificates CE (EMC Directive 2014/30/EU)、CE (LVD Directive 2014/35/EU))
