AIS-10H-A

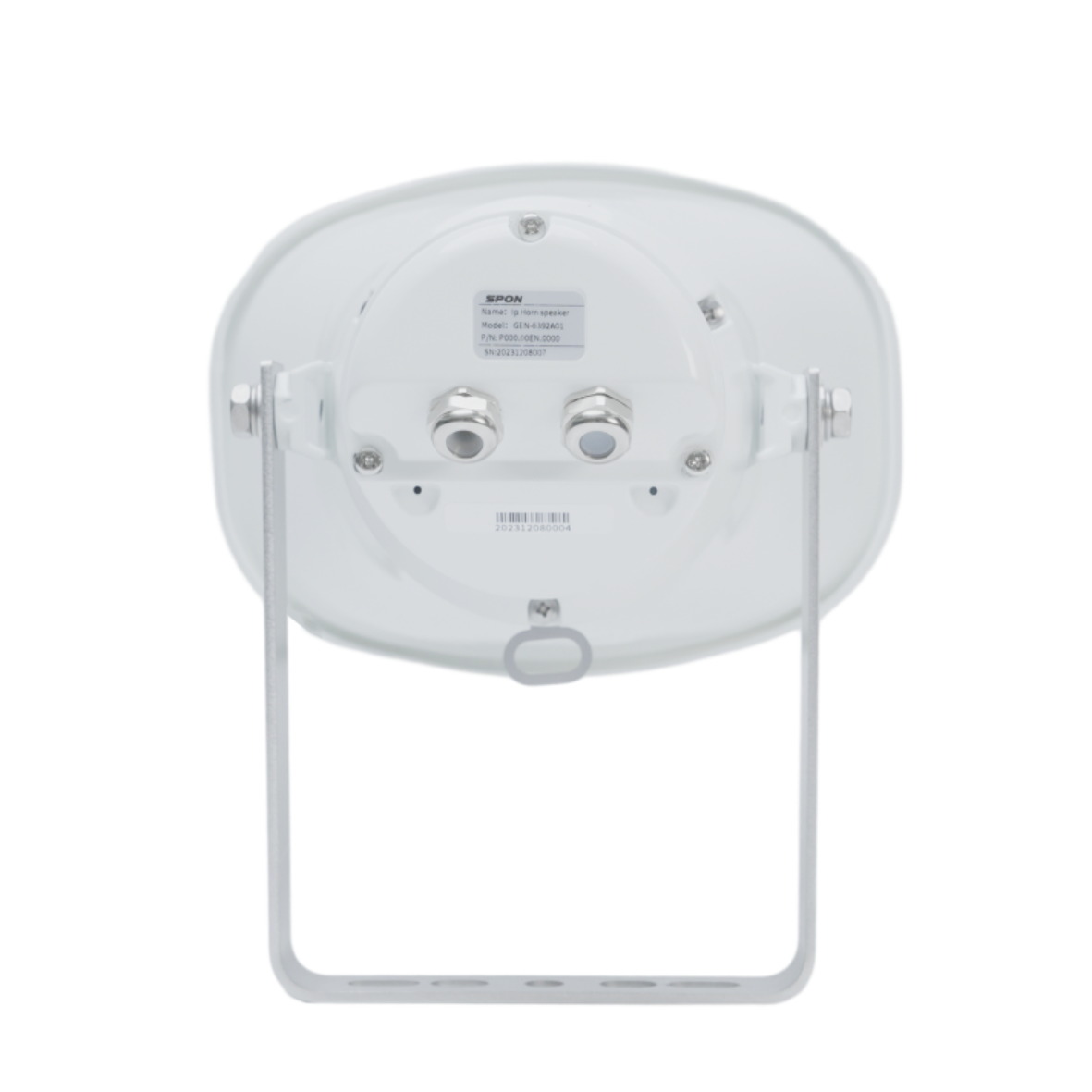

Aurora AIS-10H-A IP Speakers

IP PoE Horn Speaker
– Robust Integration: Combines an amplifier and speakers within a strong aluminum alloy housing, complemented by a stainless steel bracket
– High-Sensitivity Sound: Features speakers that achieve 120dB under POE power supply, suitable for clear outdoor communication
– Waterproof Microphone: Incorporates a waterproof microphone with dynamic volume adjustment, ensuring high-definition 2-Way Intercom
– Remote Self-Check: Enables logging into the device for self-check operations, functionality
– SIP Protocol Compatibility: Supports standard SIP protocol for seamless integration with mainstream SIP PBX systems like Yeastar, Asterisk, and Cisco
– ONVIF Protocol Integration: Compatible with third party monitoring systems, enhancing security and monitoring capabilities
– Weather Resistance: With an IP66 protection level, it withstands extreme weather and operates in temperatures ranging from -40 to 70°C
– Flexible Power Options: Supports both POE and POE+ for versatile installation and deployment
– Remote Management: Offers remote management capabilities and supports online upgrades for continuous system improvement

Specifications


Audio Parameters
  • Audio Codec: G.711A-law, G.711μ-law, G.722
  • Sensitivity: 109dB±3dB (1W, 1m)
  • Maximum SPL: 120dB
  • S/N (Signal-to-Noise) Ratio: ≥85dB
  • Audio Sampling & Bit Rate: 8kHz~44.1kHz, 16bit, 8kbps~320kbps
  • Frequency Response: 280Hz~12.5kHz
Mechanical & Environment Condition
  • Mounting Method: Wall-mounted or Pole
  • Ingress Protection Grade: IP66
  • Installation Environment: Outdoor Locations
  • Operating Temperature:-40℃~+70℃
  • Operating Humidity: ≤90% RH non-condensing
  • Bracket Material: Stainless Steel
  • Housing Material: Aluminum Alloy
  • Color: Off-White
  • Product Dimensions: 233*173*281mm
  • Product Weight: 1.6KG
Power Parameters
  • Power Supply: DC 24V/1A, PoE (IEEE802.3af), PoE+ (IEEE802.3at)
  • Standby Power Consumption: ≤3W
  • Rated Power Output: 10W(MAX:12W)
Network Parameters
  • Network I/F: 10BASE-T/100BASE-TX RJ45
  • Network Protocol: SIP、ONVIF、HTTP、UDP、ARP、ICMP、IGMP
  • Configuration Method: Web Interface or DevConfig Tool
Standard Accessories
  • 1×2-Pin Pluggable Terminal Block Connector
  • 1×4-Pin Pluggable Terminal Block Connector
  • 1×6-Pin Pluggable Terminal Block Connector
  • 1×Quick Installation Guide

Documentations

Please download the technical documents here
