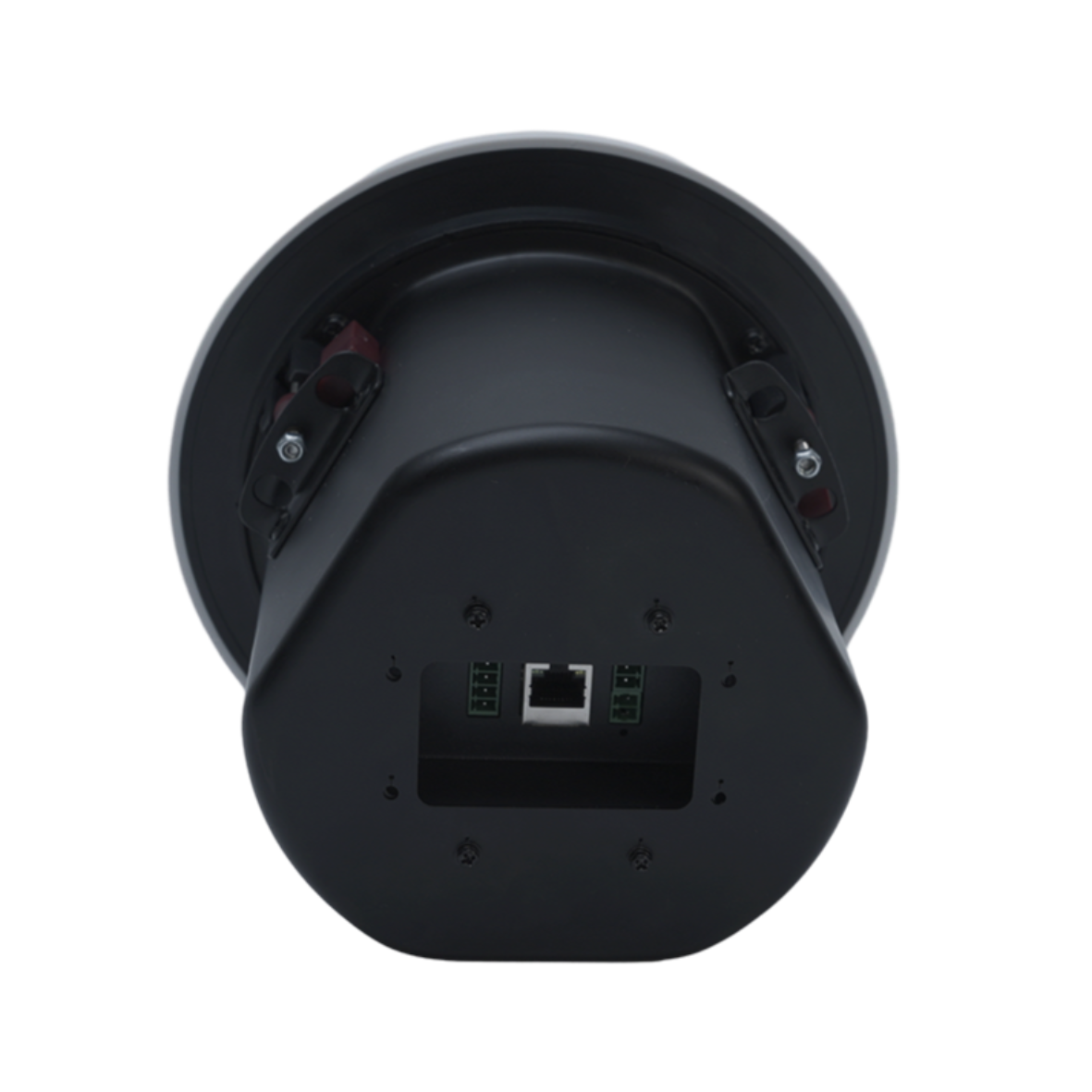

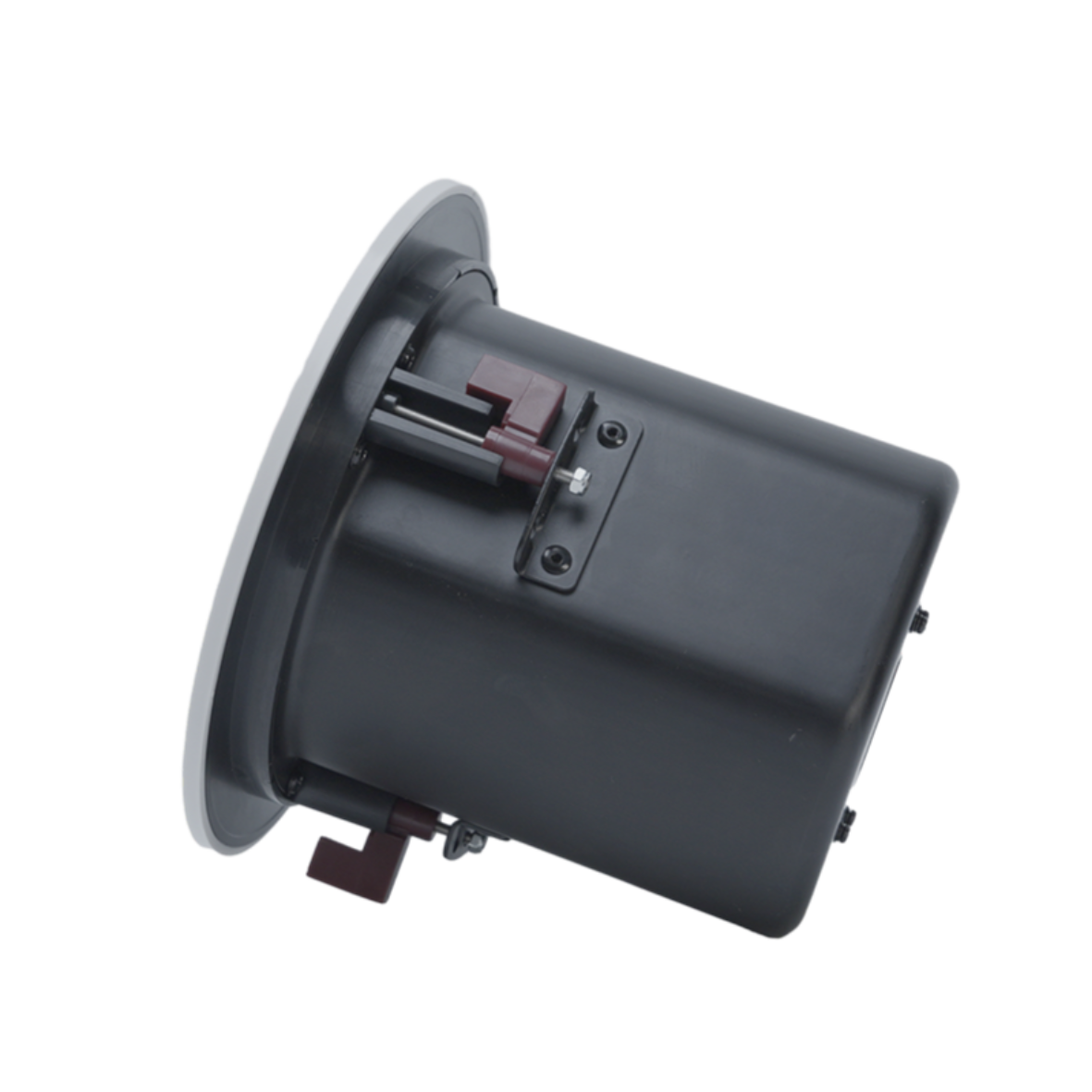

AIS-10C-I

Aurora AIS-10C-I IP Speakers

IP PoE Ceiling Speaker
– Robust Design: Features an integrated design with a built-in amplifier, encased in a sturdy metal housing fordurability.
– Powerful Audio Output: Utilizes high-sensitivity speakers capable of reaching 100dB under POE power supply, ensuring clear sound delivery.
– High-Definition Microphone: Includes a built-in microphone head with dynamic volume adjustment for clear, high-definition 2-way Intercom
– Remote Diagnostics: Offers a remote self-check function, allowing users to log into the device for diagnostics and speaker functionality checks.
– SIP Protocol Support: Compatible with standard SIP protocol, facilitating easy integration with mainstream SIP PBX systems.
– ONVIF Protocol Integration: Supports ONVIF protocol for seamless integration with third-party monitoring systems.
– Versatile Interface Options: Equipped with multiple interfaces for connecting with a range of third party devices.
– POE/POE+ Support: Provides flexible deployment options with support for both POE and POE+ power supplies.
– Remote Management: Enables remote management and supports online upgrades for continuous optimization and maintenance.

Specifications


Audio Parameters
  • Audio Codec: G.711A-law, G.711μ-law, G.722
  • Sensitivity: 89dB±3dB (1W, 1m)
  • Maximum SPL: 100dB
  • S/N (Signal-to-Noise) Ratio: ≥85dB
  • Audio Sampling & Bit Rate: 8kHz~44.1kHz, 16bit, 8kbps~320kbps
  • Frequency Response: 70Hz~18kHz
Mechanical & Environment Condition
  • Mounting Method: Ceiling Mount
  • Installation Environment: Indoor Locations
  • Operating Temperature:-30℃~+60℃
  • Operating Humidity: ≤90% RH non-condensing
  • Net Material: Iron
  • Housing Material: Iron
  • Color: Off White(Net) + Black(Housing)
  • Product Dimensions: φ204x167mm
  • Hole Dimension: φ180mm
  • Product Weight: 1.9KG
Power Parameters
  • Power Supply: DC 24V/1A, PoE (IEEE802.3af), PoE+ (IEEE802.3at)
  • Standby Power Consumption: ≤3W
  • Rated Power Output: 10W
Network Parameters
  • Network I/F: 10BASE-T/100BASE-TX RJ45
  • Network Protocol: SIP、ONVIF、HTTP、UDPARP、ICMP、IGMP
  • Configuration Method: Web Interface or DevConfig Tool
Standard Accessories
  • 1×2-Pin Pluggable Terminal Block Connector
  • 1×4-Pin Pluggable Terminal Block Connector
  • 1×6-Pin Pluggable Terminal Block Connector
  • 1×Quick Installation Guide

Documentations

Please download the technical documents here
