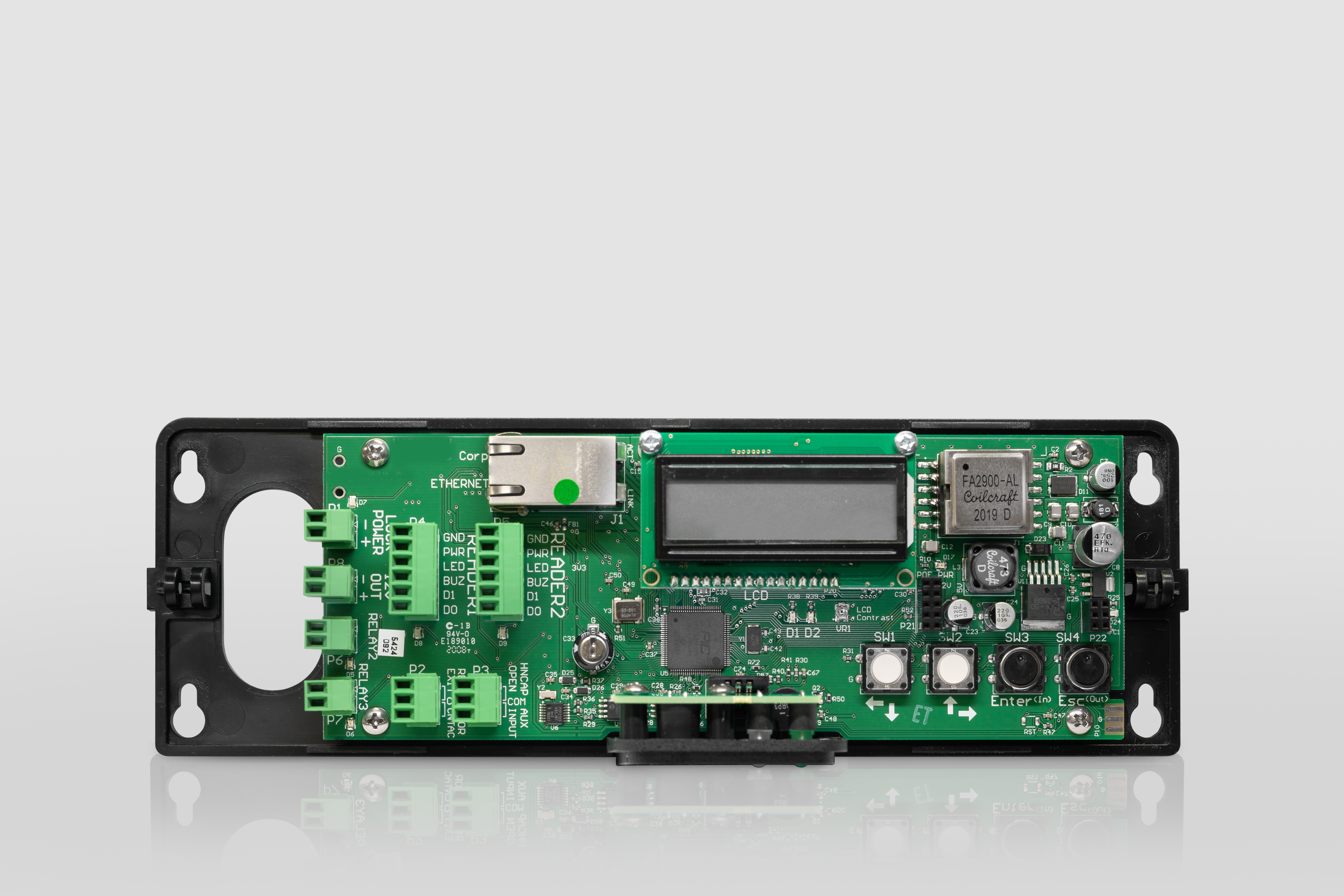

Aurora AAC-2104 Access Control POE



POE POWERED 2 DOOR
The AAC-2104 is our PoE (Power over Ethernet) two door controller. Designed to be mounted above or near a door; It saves time on installation, troubleshooting and cabling cost. Mount above 1 door and run standard access control cable to a nearby door within 500’. External power for a second strike may be required. This controller features or built-in PIR (passive Infrared Sensor) to allow cardholders free egress.

  • Power Over Ethernet
  • Outputs
  • Inputs
  • Integrated Lock Power
  • Solid State Design
  • Onboard Diagnostics
  • PIR Motion Sensor
  • 3-Years Warranty

Specifications


Enclosure Black ABS enclosure 10″x2.2″x3.5″. Includes mounting screws and wall anchors. Optional backbox available.
Communication 1 X RJ-45 10/100 Mbps ethernet port, PoE standard (15.4W), 100m max distance. Wire Spec 100m max distance, Cat5 or better.
Inputs
  • 4 X Fully configurable digital inputs. Supports supervised state with included 8 X 1k ohm resistors. Wire Spec 152m Max Distance, 2 Conductors stranded 22 AWG, shielded.
  • 2 X Wiegand ports. Wire Spec 152m Max Distance, 6 Conductors stranded not twisted, 24 AWG, shielded
Outputs
  • 1 X Lock power up to 12V @ 500mA. Wire Spec 152m Max Distance, 2 Conductors stranded 18 AWG.
  • 2 X Solid state relays up to 24V @ 1A.
  • 1 X 12V out up to 12V @ 300mA. Wire spec 152m Max Distance, 2conductors stranded 22AWG.
Storage Stores up to 100,000 cardholders. Stores up to 50,000 events. First in first out queue.
Certifications UL 294/ ULC S319-05 listed, FCC
MISC
  • Super capacitor maintains data and time up to l month without power.
  • Photo-resistive tamper sensor.
  • Piezo buzzer.
  • Automatic DST switch.
Software
  • Door controller is programmed and monitored from PN server software.
  • Software can be hosted by Aurora controls, Security integrator or via local/ remote Windows PC/ Server.

Documentations

Please download the technical documents here
