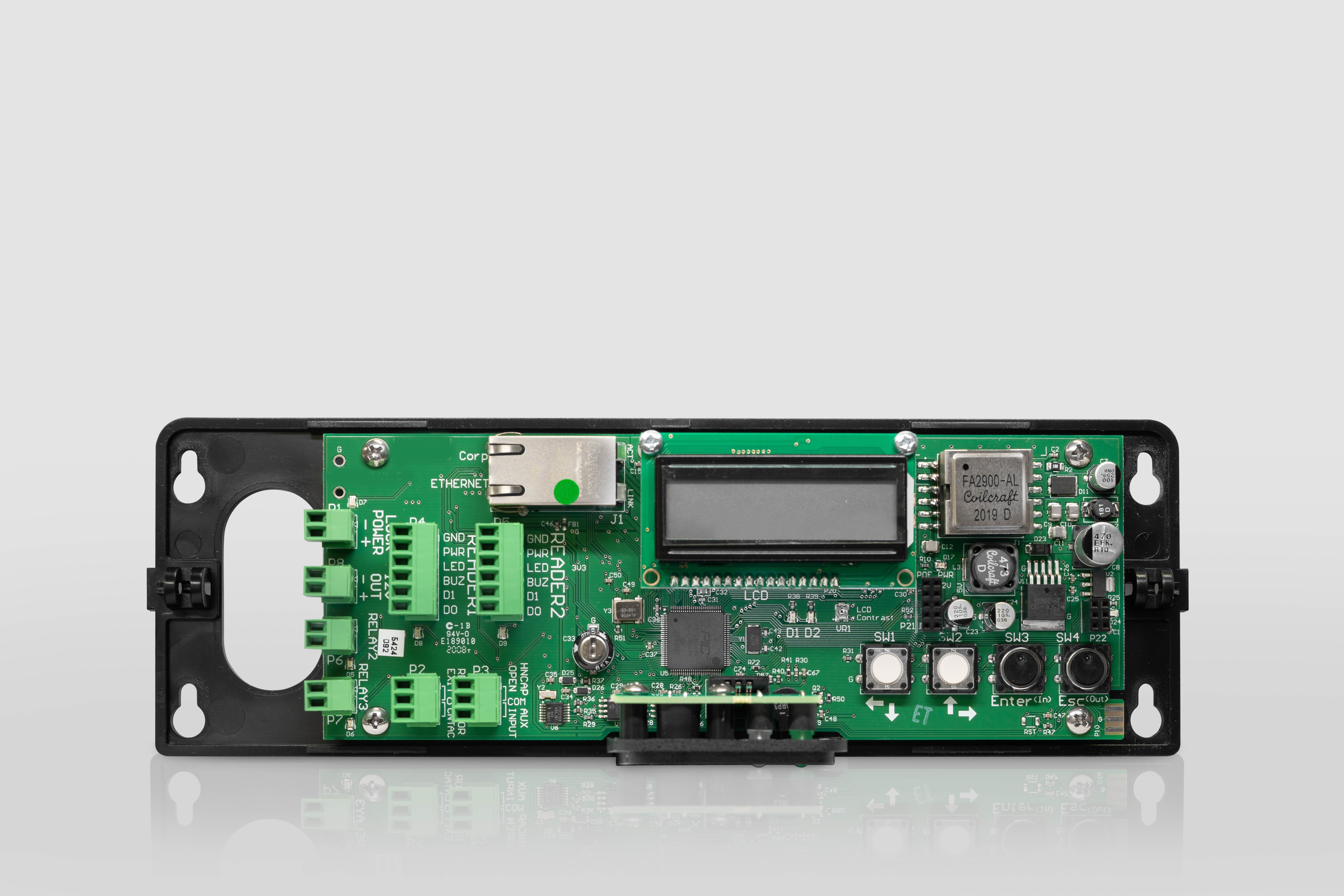

AAC-2102

Aurora AAC-2102 Access Control POE



POE POWERED 1 DOOR
The AAC-2102 is our PoE (Power over Ethernet) single door controller. Designed to be mounted above the door, It saves time on installation, troubleshooting and cabling cost. This controller features our built-in PIR (Passive Infrared Sensor) to allow cardholders free egress.

  • Power Over Ethernet
  • Outputs
  • Inputs
  • Integrated Lock Power
  • Solid State Design
  • Onboard Diagnostics
  • PIR Motion sensor
  • 3-Years Warranty

Specifications


Enclosure Black ABS enclosure 10″x2.2″x3.5″. Includes mounting screws and wall anchors. Optional backbox available.
Communication 1 X RJ-45 10/100 Mbps ethernet port, PoE standard (15.4W), 100m max distance. Wire Spec 100m max distance, Cat5 or better.
Inputs
  • 4 X Fully configurable digital inputs. Supports supervised state with included 8 X 1k ohm resistors. Wire Spec 152m Max Distance, 2 Conductors stranded 22 AWG, shielded.
  • 2 X Wiegand ports. Wire Spec 152m Max Distance, 6 Conductors stranded not twisted, 24 AWG, shielded
Outputs
  • 1 X Lock power up to 12V @ 500mA. Wire Spec 152m Max Distance, 2 Conductors stranded 18 AWG.
  • 2 X Solid state relays up to 24V @ 1A.
  • 1 X 12V out up to 12V @ 300mA. Wire spec 152m Max Distance, 2conductors stranded 22AWG.
Storage Stores up to 100,000 cardholders. Stores up to 50,000 events. First in first out queue.
Certifications UL 294/ ULC S319-05 listed, FCC
MISC
  • Super capacitor maintains data and time up to l month without power.
  • Photo-resistive tamper sensor.
  • Piezo buzzer.
  • Automatic DST switch.
Software
  • Door controller is programmed and monitored from PN server software.
  • Software can be hosted by Aurora controls, Security integrator or via local/ remote Windows PC/ Server.

Documentations

Please download the technical documents here
